1201-8 Ohm BW
1201-8 Ohm BW
- Description
- Shipping and Returns
We strongly recommend that you spare parts fitted by a qualified guitar technician, electrical service engineer or your local music store.
All of the information you may need:

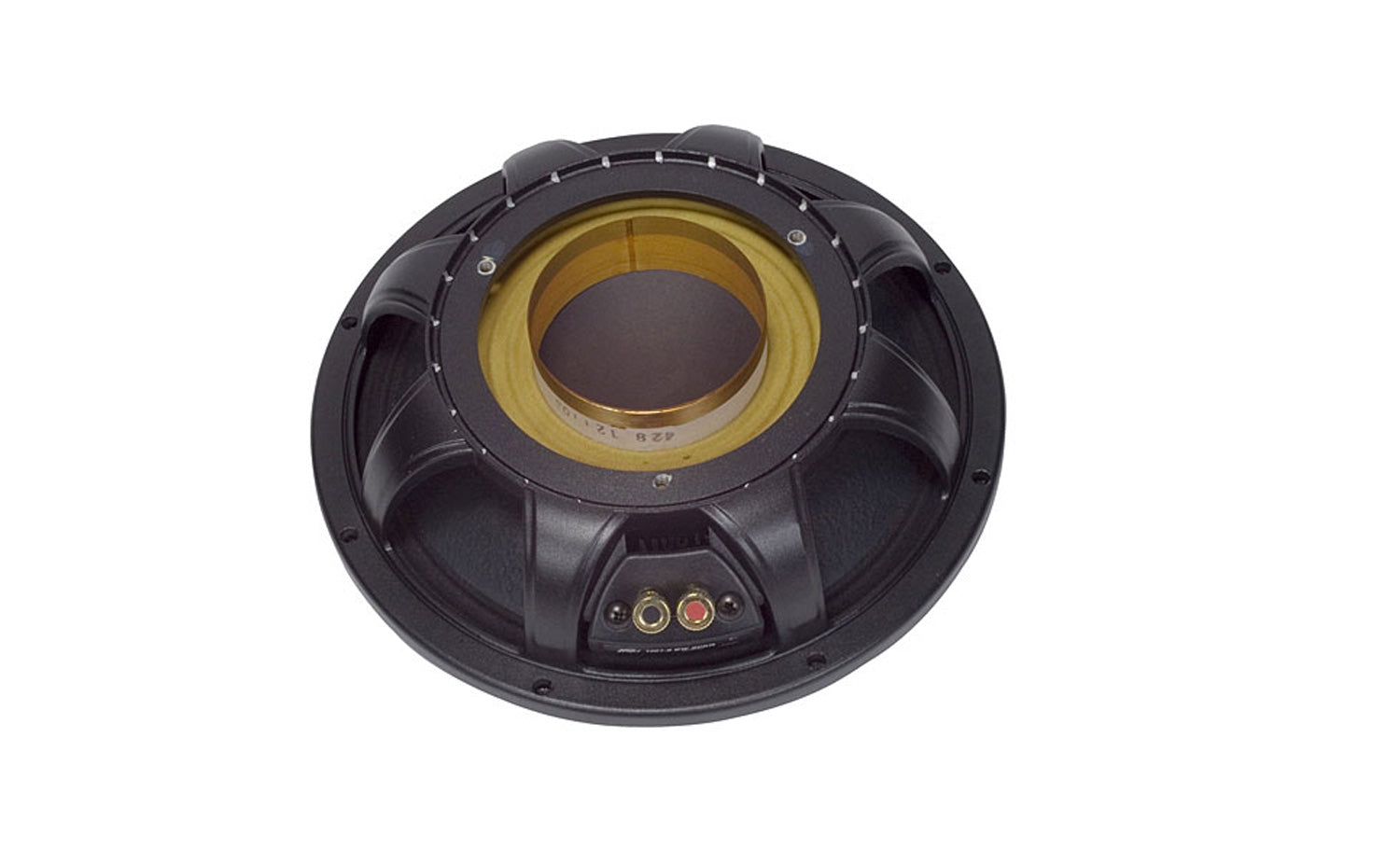

Product Type: Speakers
Peavey Part Number: 00560700
Product It Fits: 1245M, 2445 Monitor, SP112M, 112HS
Sensitivity: 98.5 dB / 1W 1m
Voice Coil Cooling: na
Net Weight: 16 lbs / 7.3 kg
Throat Parameter: Standard: 2" / 50.8 mm; Optional: 1.6" / 40.6mm; Supplied with throat extension
Nominal Impedance: 8 Ohms
Minimal Impedance: 7.1 Ohms
DC Resistance: 6.8 Ohms
Power Capacity 1Khz - 20Khz: 500 Hz to 20000 Hz
Nominal Efficiency: 30%
Frequency Response: 500 Hz to 2000 Hz
Recommeded Crossover: 1000 Hz
Lowest Recommended Crossover: 500 Hz at 12 dB / Octave
Dimensions: Standard: 8.388" (213mm)D x 6.05" (154mm) H
Horn Coupling Diameter: na
Horn Coupling Threads: na
Shipping Weight: Standard: 25 lbs / 11.4 kg
Diaphragm Kit: 377380
Power - Peak: 1400W
Power - Program: 700W
Power - Continuous: 350W
Frequency Range: 60 Hz - 3.5 kHz
Voice Coil Diameter: 4.0" / 100mm
Voice Coil Material: Aluminium ribbon wired; Plyimide-impregnated fibreglass former Nomex stiffened; OFHC copper leads
Znom (ohms): 8.000
Revc (ohms): 6.520
BL (T/M): 19.600
Vas (Litres): 66.300
Cms (uM/N): 172.800
Mms (gm): 44.400
Qms: 4.840
Qes: 0.270
Qts: 0.257
Xmax (mm): 2.600
Le (mH): 0.370
SPL (1W 1m): 98.500
No (%): 4.490
Vd (cu. in. /ml): 16.5 / 270
Pmax (Watts pgm): 700.000
Disp (cu. In. / ml): 109 / 1797
Replacement Basket: 560710
