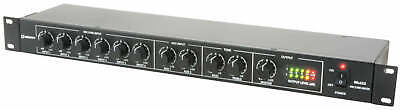

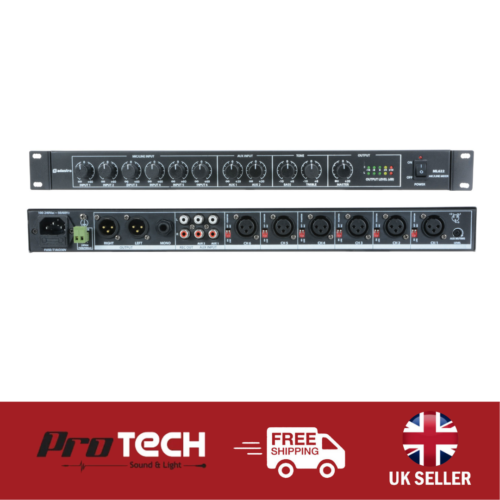

1U Mic/Line Rack Mixer
Rack-mountable 1U mixer with 6 mic/line inputs and 2 auxiliary inputs. Each mic/line channel has switchable phantom power and input level. Output connections are stereo XLR, mono jack or REC output on RCA with master bass and treble tone controls. Designed as a master or expansion mixer for installed sound systems and conferences.
- 6 switchable mic or line inputs
- 2 stereo aux inputs
- Individually switchable phantom power
- 24Vdc power option
- Power supply 100-240Vac, 50/60Hz (IEC) or 24Vdc (terminals)
- Fuse T1AL 250V (mains) or F500mA (24Vdc)
- Phantom power +20Vdc (switchable)
- Inputs : mic/line 6 x balanced XLR
- Inputs : aux 2 x L+R RCA
- Outputs L+R XLR, mono 6.3mm jack, L+R RCA (REC)
- Controls 6 x Mic/Line level, 2 x Aux level, Treble, Bass, Master
- Input impedance 3.3k Ohms (mic/line), 10k Ohms (aux)
- Frequency response : mic 20Hz - 18kHz
- Frequency response : line 14Hz - 20kHz
- Frequency response : aux 10Hz - 23kHz
- Input sensitivity : mic -45dBV
- Input sensitivity : aux/line -10dBV
- Signal to noise ratio : mic 55dB
- Signal to noise ratio : aux/line 60dB
- THD 0.05%
- Dimensions 482 x 130 x 44mm
- Weight
