4X LED Par Light Stage Lighting Kit with Flight Case
4X LED Par Light Stage Lighting Kit with Flight Case
- Description
- What's Included
- Specification
- Shipping and Returns
Theatre / Hall Lighting Package suitable for small venues or small event space such as primary schools, school and college drama suites, village halls, church halls, conference centres. Would also suit a band or vocal artist.
All of the equipment has been chosen to be easy to operate and is fully ready to use right out of the box.
Full mix of colours across the full colour spectrum using intelligent RGB lighting from low powered 180 watt LED slim par technology. Also works as stand alone sound activation.
Will cover a stage of approximately 16 deep feet x 24 feet wide.
FREE DELIVERY
If you require more information or enhancements and additions to your lighting package. Please don't hesitate to conatct us.

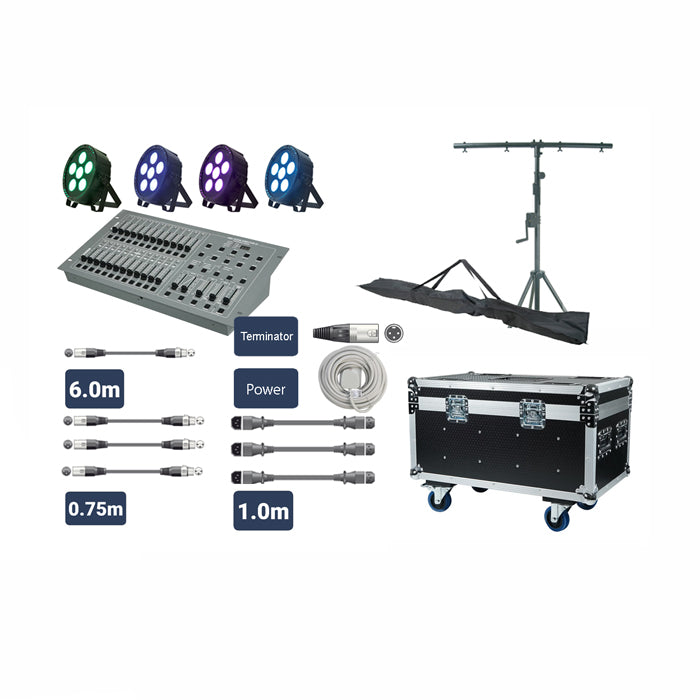

- 4x 180 watt slim par stage lights with 3 channel colour mix - red, green, blue.
- 1x heavy duty winch up stand with T-bar for mounting above LED par lights.
- 1x LEDJ 24 channel lighting control desk. More than enough channels enables you to add more lights later if you need to.
- 1x carrying bags for above winch stand.

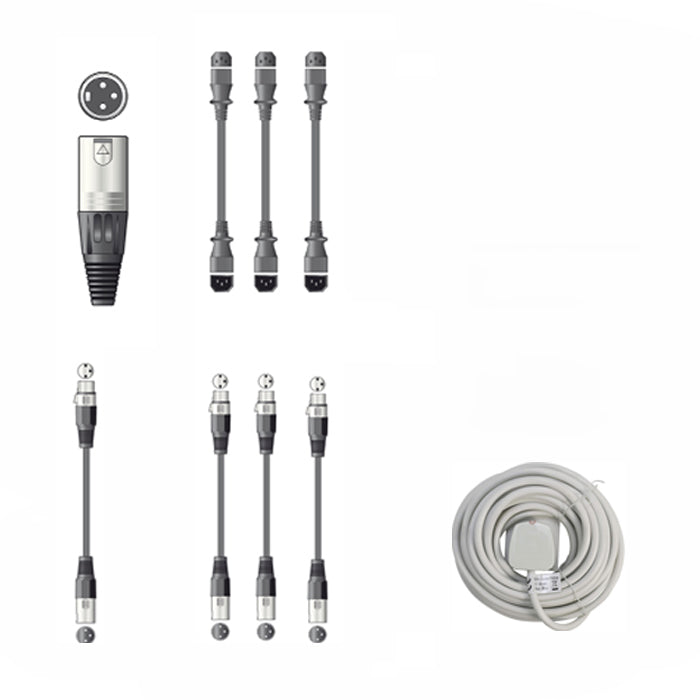

- 1x 6M DMX link cables for linking lighting desk to lighting bar.
- 3x 0.75M DMX link cables for daisy-chain linking the lights.
- 1x DMX terminator to terminate the signal at the last fixture/light for smooth running of DMX data.
- 1x 10M single gang power extension.
- 1x 1M mains plug to IEC female.
- 3x 1M IEC power leads for daisy-chain linking of power to all lights.
- Wheeled Flight Case.

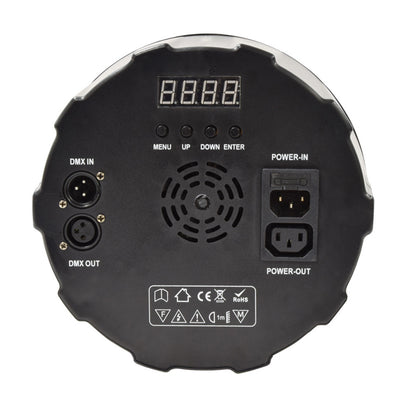

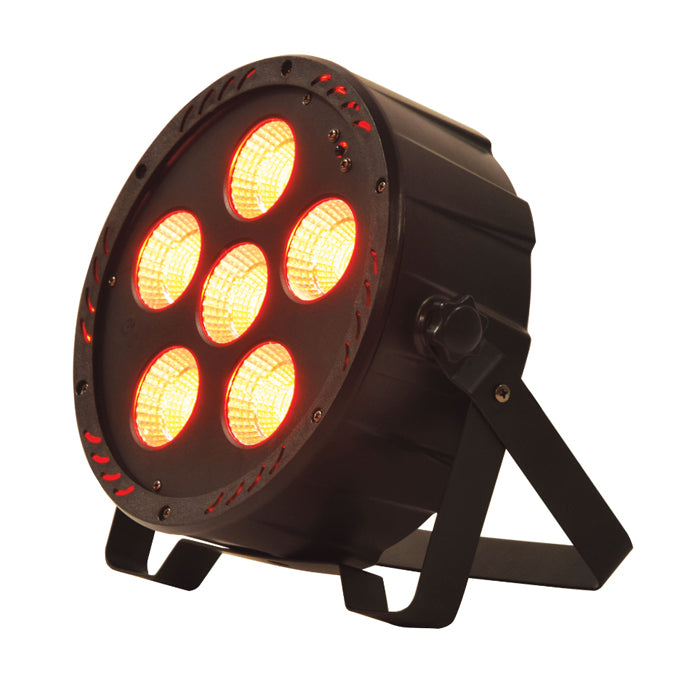

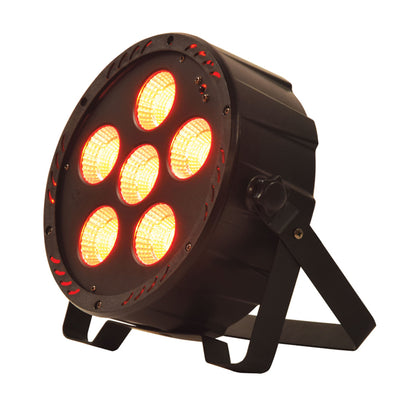

PAR-180 High Power RGB PAR Lights x4
A lightweight, high output LED PAR can fitted with 6 RGB chip on board LEDs. Units can be controlled by internal auto or sound-activated programs or via 3 channel DMX. A great solution for background wash illumination.
- LEDs per fixture 6x 30W RGB COB (chip-on-board)
- DMX channels 3 or 7
- Power supply 100-240Vac, 50/60Hz (IEC)
- Power consumption 200W max.
- Illuminance 1220lux @ 2m
- Beam angle 60°
- Projection distance 15m
- Dimensions 100 x 250mmØ
- Weight 1.5kg
- LED : safety standard BSEN62471:2008.

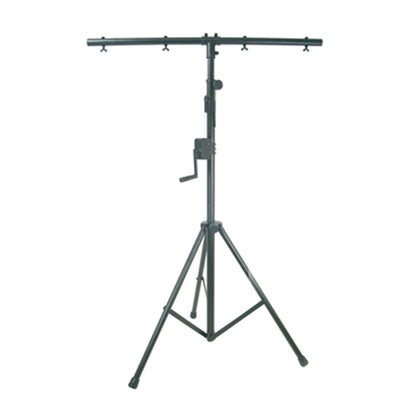

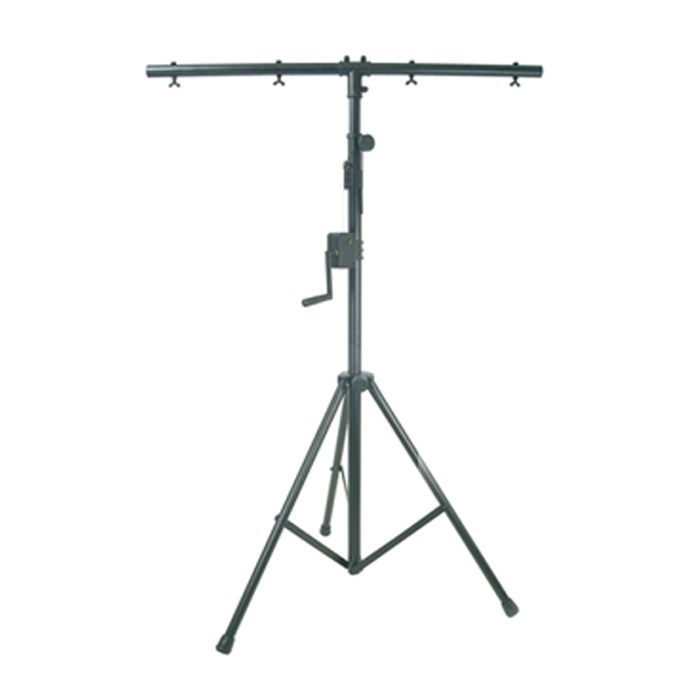

Heavy Duty Lighting Stand with Winch & T-bar
Adjustable heavy duty solid metal lighting stand on a foldable tripod with winch mechanism and T-bar.
- Height range 1.5 to 3.0m
- Max. weight load 50kg
- Width of T-bar 1.2m
- Dimensions collapsed 1500 x 100 x 150mm
- Weight 12kg.

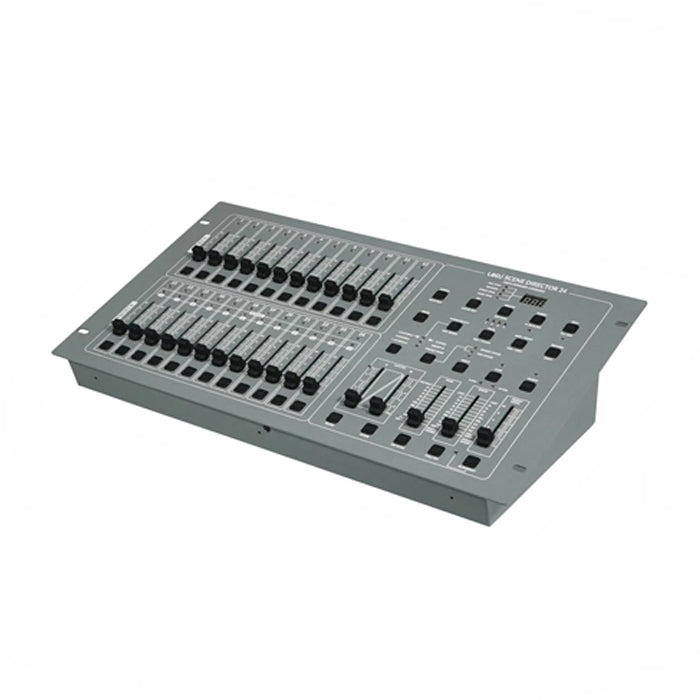

Scene Director Lighting Desk
The Scene Director 24 dimmer console from allows up to 4,600 programmable scenes and 48 programmable chases. The Scene Director also incorporates an audio input and built-in microphone, allowing sound-to-light control. This rack mountable unit also includes removable plastic edges for use as a freestanding unit.
- 24 channel dimming console
- 4,600 programmable scenes
- 48 programmable chases
- Supplied with a selection of pre-programmed chases to use or edit
- 24 individual channel faders
- 24 flash buttons
- LED display
- Sound-to-light control.
- Midi in, out and thru connectors
Flight Case
- 9mm hexaboard plywood panels
- Fitted with metal tour label dish and label
- Heavy duty, industrial grade handles and Penn Elcom butterfly catches
- Castors included (2 braked, 2 non-braked)
- Dimension inner 758mm long x 358mm wide x 367 deep (inc lid rescess)
- Dimensions outer 782mm long x 290 wide x 382 high (please allow 100mm extra for castors).
Carrying Bag for Lighting Stand
Strong transport bag made of a heavy duty material allowing safe transport of a lighting stand. Fitted with carrying handles and full length zip fastener.

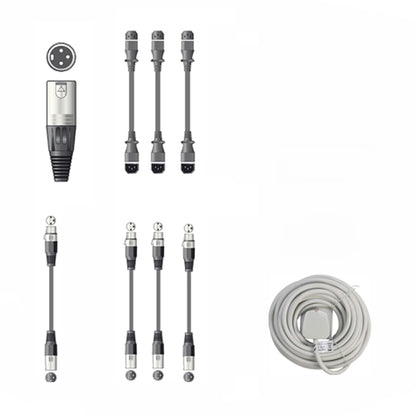

Professional DMX Lighting Leads
Including 1x 6M for linking between desk and stand, and 3x 0.75M link leads to daisy chain the signal between the lights.
DMX Terminator
For terminataing the signal at the last light. Best practice insists that you always use a DMX terminator at the last fixture to cap off erroneous data.
Power Cables
1x 10M mains plug to single gang socket extension, 1x Mains plug to IEC lead, 3x IEC male to IEC female link leads.
Shipping Info
We aim to process and despatch your product on the same or next day of ordering.
Usual cut off time for same day despatch is 5pm.
If we inadvertently don't have the correct stock levels of your product we will immediately inform you and offer you a the choice of a later despatch or full, no questions, cancellation without charging your card.
In the case of spare parts some items are not held on stock and ordered in especially. In this case you will be informed before we process your order.
Delivery is usually 2-3 working days using a secure tracked UK courier.
Returns Policy
We have a 14-day return policy, which means you have 14 days after receiving your item to request a return.
To be eligible for a return, your item must be in the same condition that you received it, unused, with tags, and in its original packaging, with no visible damage to the product box. You’ll also need the receipt or proof of purchase.
To start a return, you can contact us at info@protechsoundandlight.co.uk.
If your return is accepted, we’ll send you a return shipping label, as well as instructions on how and where to send your package. Items sent back to us without first requesting a return will not be accepted.
You can always contact us with any queries at info@protechsoundandlight.co.uk.
Damages and issues
Please inspect your order upon reception and contact us immediately if the item is defective, damaged or if you receive the wrong item, so that we can evaluate the issue and make it right.
Exceptions / non-returnable items
Certain types of items cannot be returned, such as spare parts as these could be used and broken in the customer installation process, we cannot also guarantee the return would be the original part..
Unfortunately, we cannot accept returns on sale items.
Exchanges
The fastest way to ensure you get what you want is to request to return the item you have, and once the return is accepted, make a separate purchase for the new item.
Returns Policy
We will notify you once we’ve received and inspected your return, and let you know if the refund was approved or not. If approved, you’ll be automatically refunded on your original payment method within 10 business days. Please remember it can take some time for your bank or credit card company to process and post the refund too.
If more than 15 business days have passed since we’ve approved your return, please contact us at info@protechsoundandlight.co.uk.
