4X Par Theatre Lighting Package

Theatre / Hall Lighting Package suitable for small venues or small event space such as primary schools, school and college drama suites, village halls, church halls, conference centres. Would also suit a band or vocal artist.

All of the equipment has been chosen to be easy to operate and is fully ready to use right out of the box.

Full mix of colours across the full colour spectrum using intelligent RGB lighting from low powered 180 watt LED slim par technology. Also works as stand alone sound activation.

Will cover a stage of approximately 16 deep feet x 24 feet wide.

FREE DELIVERY

If you require more information or enhancements and additions to your lighting package. Please don't hesitate to conatct us.

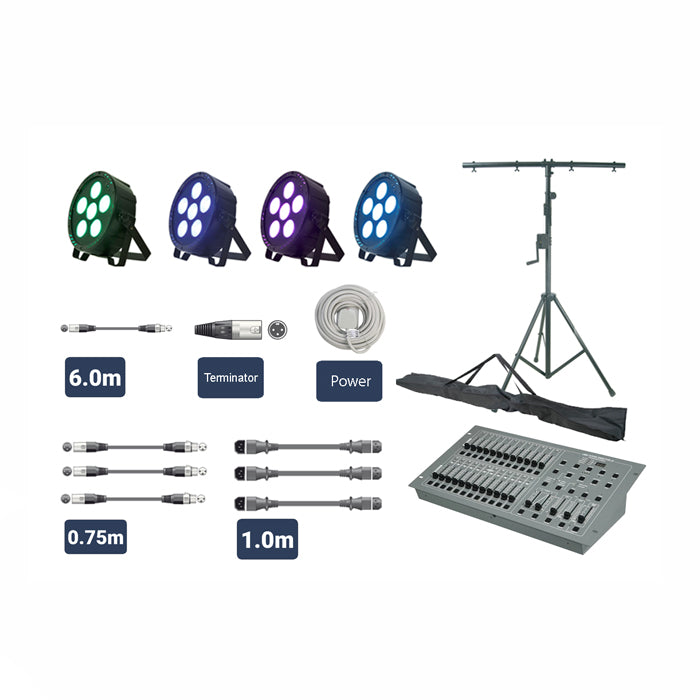

What's Included

• 4x 180 watt slim par stage lights with 3 channel colour mix - red, green, blue.
• 1x heavy duty winch up stand with T-bar for mounting above LED par lights.
• 1x LEDJ 24 channel lighting control desk. More than enough channels enables you to add more lights later if you need to.
• 1x carrying bags for above winch stand.
• 1x 6M DMX link cables for linking lighting desk to lighting bar.
• 3x 0.75M DMX link cables for daisy-chain linking the lights.
• 1x DMX terminator to terminate the signal at the last fixture/light for smooth running of DMX data.
• 1x 10M single gang power extension.
• 1x 1M mains plug to IEC female.
• 3x 1M IEC power leads for daisy-chain linking of power to all lights.


Specification

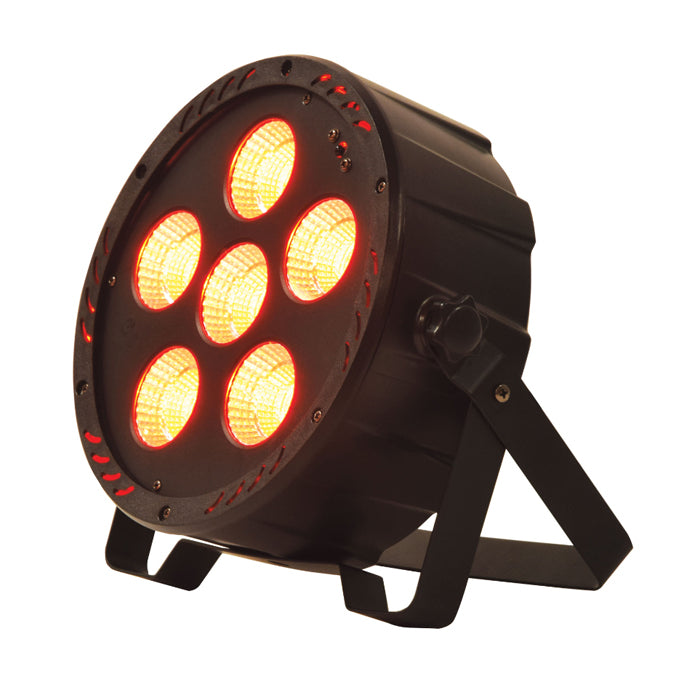

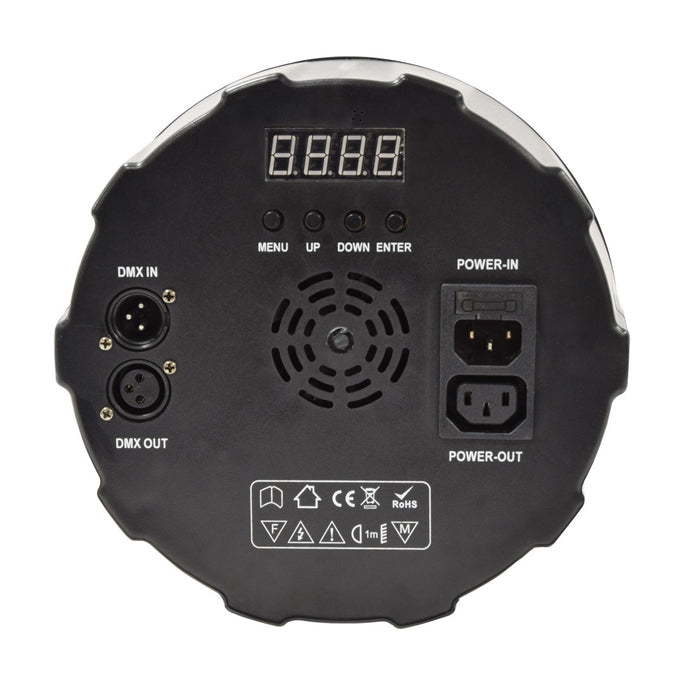

PAR-180 High Power RGB PAR Lights x4

A lightweight, high output LED PAR can fitted with 6 RGB chip on board LEDs. Units can be controlled by internal auto or sound-activated programs or via 3 channel DMX. A great solution for background wash illumination.

• LEDs per fixture 6x 30W RGB COB (chip-on-board)
• DMX channels 3 or 7
• Power supply 100-240Vac, 50/60Hz (IEC)
• Power consumption 200W max.
• Illuminance 1220lux @ 2m
• Beam angle 60°
• Projection distance 15m
• Dimensions 100 x 250mmØ
• Weight 1.5kg
• LED : safety standard BSEN62471:2008.

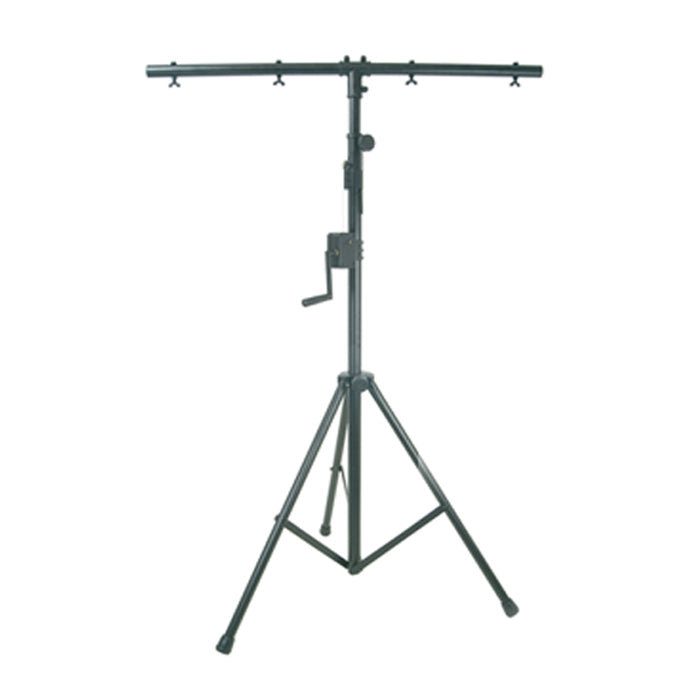

Heavy Duty Lighting Stand with Winch & T-bar

Adjustable heavy duty solid metal lighting stand on a foldable tripod with winch mechanism and T-bar.

• Height range 1.5 to 3.0m
• Max. weight load 50kg
• Width of T-bar 1.2m
• Dimensions collapsed 1500 x 100 x 150mm
• Weight 12kg.

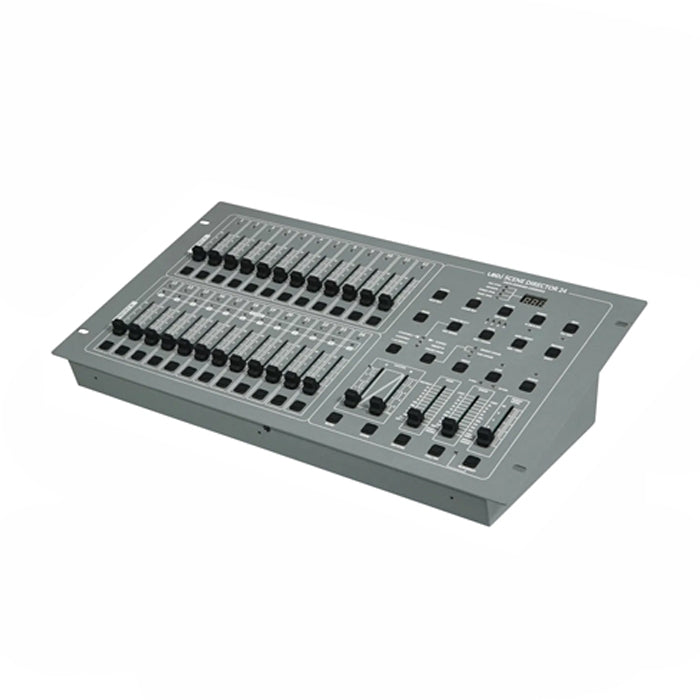

Scene Director Lighting Desk

The Scene Director 24 dimmer console from allows up to 4,600 programmable scenes and 48 programmable chases. The Scene Director also incorporates an audio input and built-in microphone, allowing sound-to-light control. This rack mountable unit also includes removable plastic edges for use as a freestanding unit.

• 24 channel dimming console

• 4,600 programmable scenes
• 48 programmable chases
• Supplied with a selection of pre-programmed chases to use or edit

• 24 individual channel faders
• 24 flash buttons
• LED display
• Sound-to-light control.
• Midi in, out and thru connectors

Carrying Bag for Lighting Stand

Strong transport bag made of a heavy duty material allowing safe transport of a lighting stand. Fitted with carrying handles and full length zip fastener.

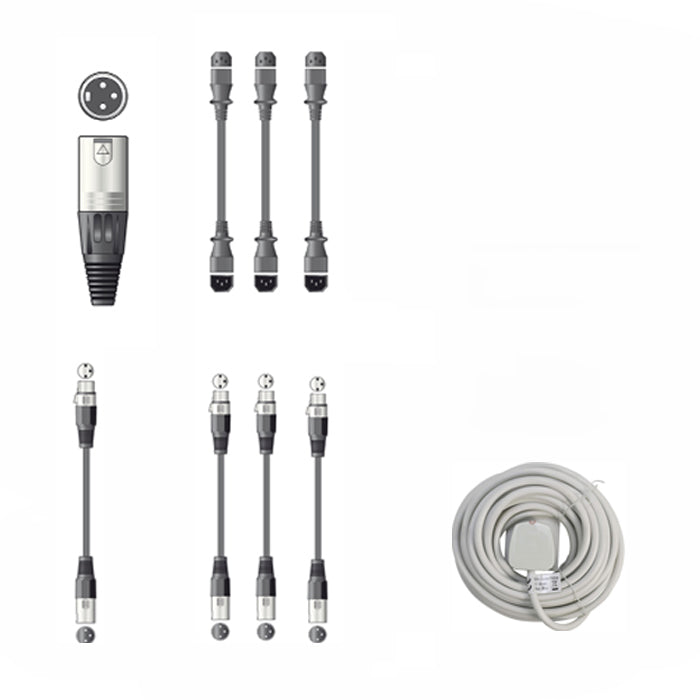

Professional DMX Lighting Leads

Including 1x 6M for linking between desk and stand, and 3x 0.75M link leads to daisy chain the signal between the lights.

DMX Terminator

For terminataing the signal at the last light. Best practice insists that you always use a DMX terminator at the last fixture to cap off erroneous data.

Power Cables

1x 10M mains plug to single gang socket extension, 1x Mains plug to IEC lead, 3x IEC male to IEC female link leads.
