12X Par Theatre Lighting Package

Theatre / Hall Lighting Package suitable for small venues or small event space such as primary schools, school and college drama suites, village halls, church halls, conference centres. Would also suit a band or event space or mobile DJ.

All of the equipment has been chosen to be easy to operate and is fully ready to use right out of the box.

Full mix of colours across the full colour spectrum using intelligent RGB lighting from low powered 180 watt LED slim par technology.

Will cover a stage of approximately 40 feet x 32 feet.

FREE DELIVERY

If you require more information or enhancements and additions to your lighting package. Please don't hesitate to conatct us.

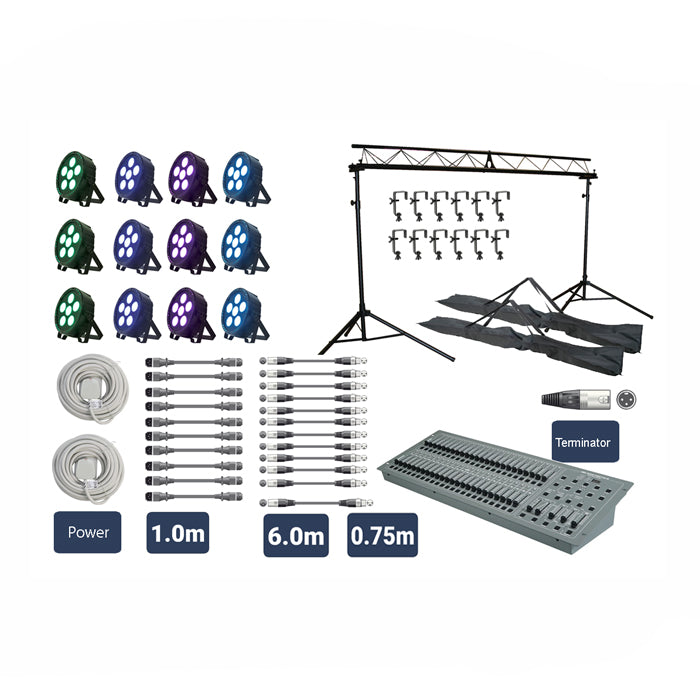

What's Included

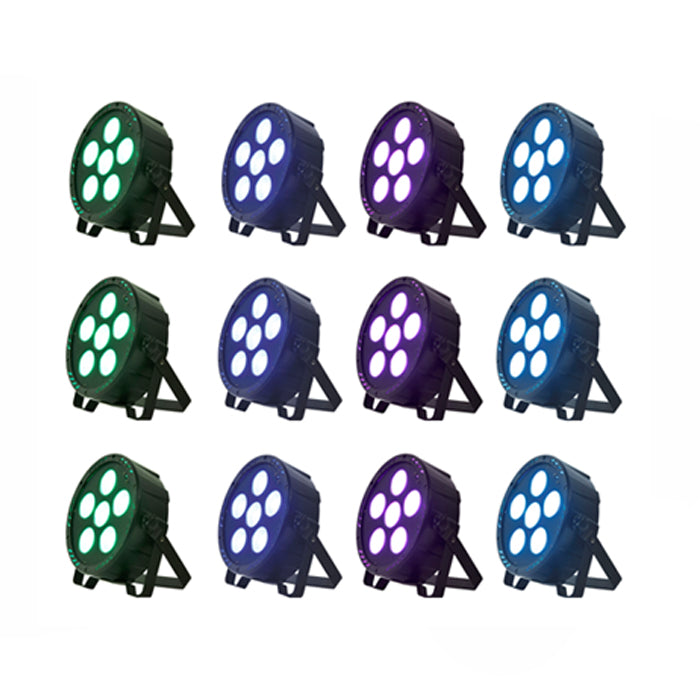

• 12x 180 watt slim par stage lights with 3 channel colour mix - red, green, blue.
• 3M of truss in 2 1.5M lockable pieces
• Two lighting stands with truss brackets
• 12 G-Clamps
• 1x LEDJ 48 channel lighting control desk.
• 2x carrying bags for lighting stands.
• 1x 6M DMX link cables for linking lighting desk and lighting bars.
• 11x 0.75M DMX link cables for daisy-chain linking the lights.
• 1x DMX terminator. To terminate the signal at the last fixture/light for smooth running of DMX data.
• 2x 10M single gang power extension.
• 2x 0.75M Mains Plug to IEC female socket.
• 10x 1M IEC power leads for daisy-chain linking of power to all lights.

Specification

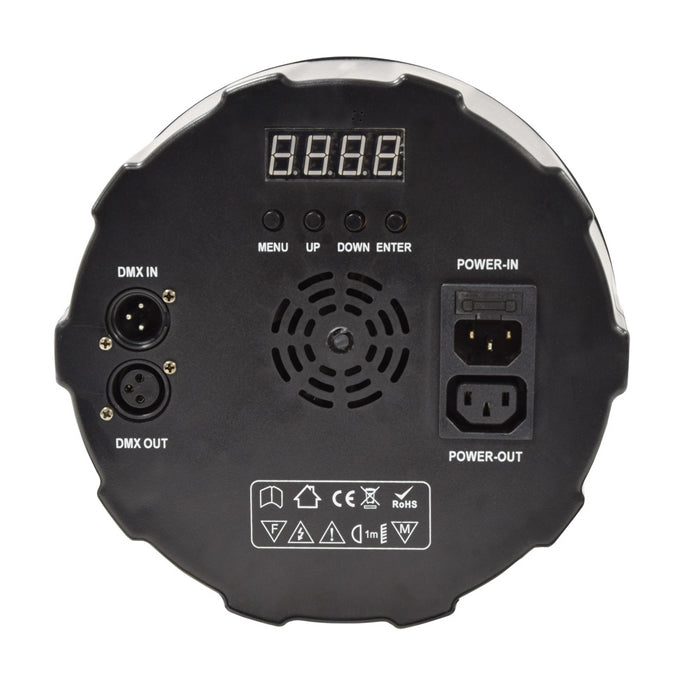

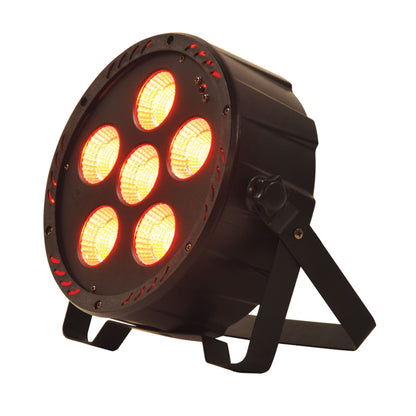

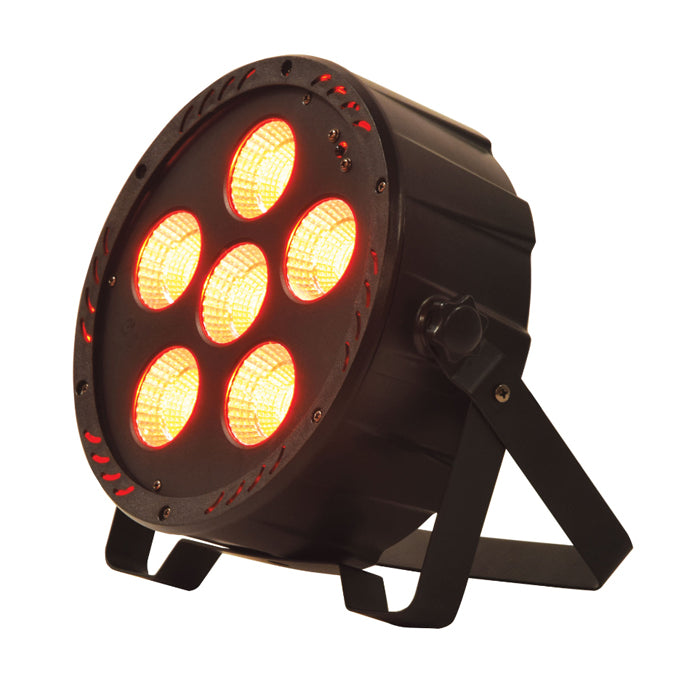

PAR-180 High Power RGB PAR Lights x12

A lightweight, high output LED PAR can fitted with 6 RGB chip on board LEDs. Units can be controlled by internal auto or sound-activated programs or via 3 channel DMX. A great solution for background wash illumination.

• LEDs per fixture 6 x 30W RGB COB (chip-on-board)
• DMX channels 3 or 7
• Power supply 100-240Vac, 50/60Hz (IEC)
• Power consumption 200W max.
• Illuminance 1220lux @ 2m
• Beam angle 60°
• Projection distance 15m
• Dimensions 100 x 250mmØ
• Weight 1.5kg
• LED : safety standard BSEN62471:2008.

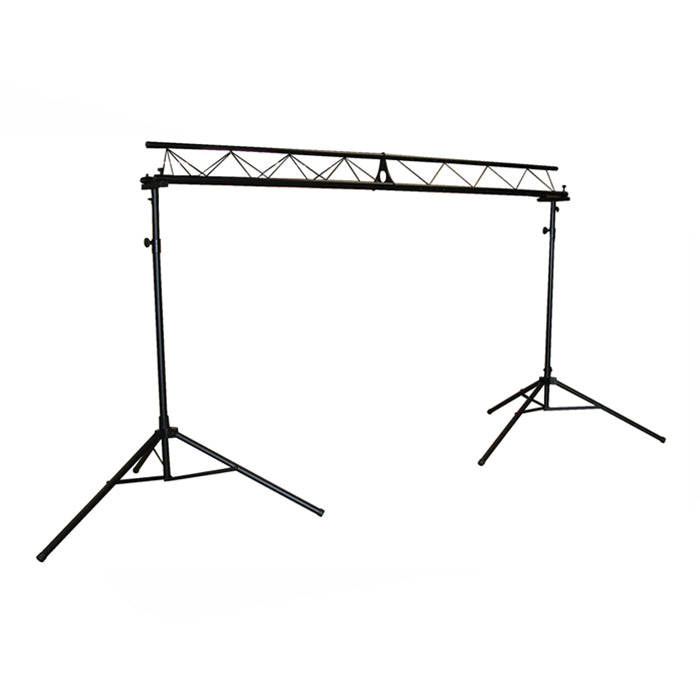

Truss and Stands

3M triangular truss lighting system in 2x 1.5M collapsible pieces along with two stands and truss mounting brackets.

• Height 1.5 - 3.0m
• Max. weight load 120kg
• Tube 38mm
• Width : truss 3.0m
• Dimensions : collapsed 1500 x 220 x 200mm
• Weight 26kg

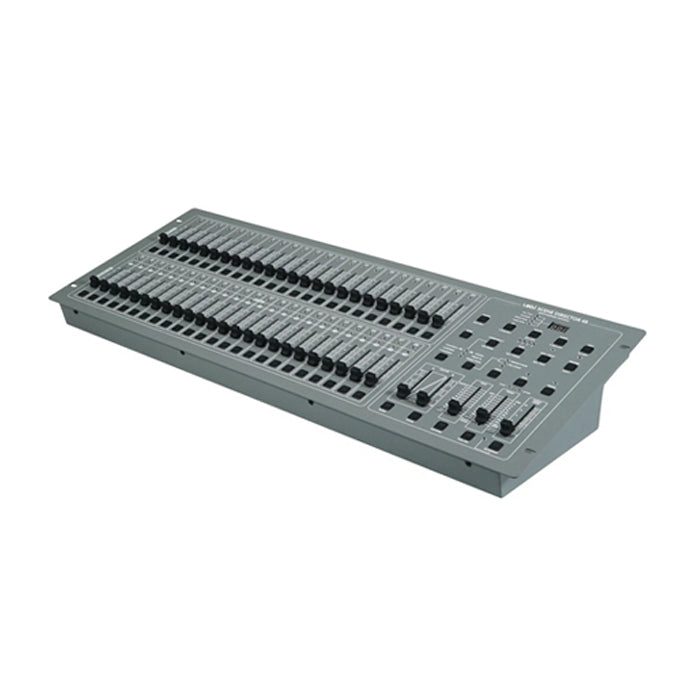

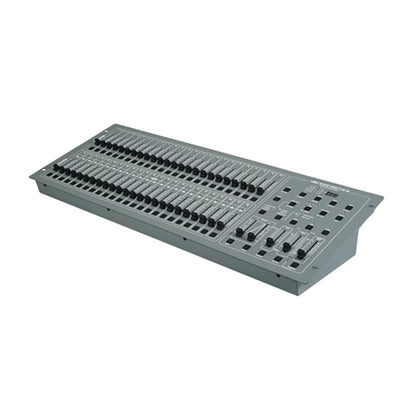

Scene Director Lighting Desk

The Scene Director 48 dimmer console from allows up to 4,600 programmable scenes and 48 programmable chases. The Scene Director also incorporates an audio input and built-in microphone, allowing sound-to-light control. This rack mountable unit also includes removable plastic edges for use as a freestanding unit.

• 48 channel dimming console

• 4,600 programmable scenes
• 48 programmable chases
• Supplied with a selection of pre-programmed chases to use or edit

• 24 individual channel faders
• 24 flash buttons
• LED display
• Sound-to-light control.
• Midi in, out and thru connectors

Carrying Bags for Lighting Stands

Strong transport bag made of a heavy duty material allowing safe transport of a lighting stand. Fitted with carrying handles and full length zip fastener.

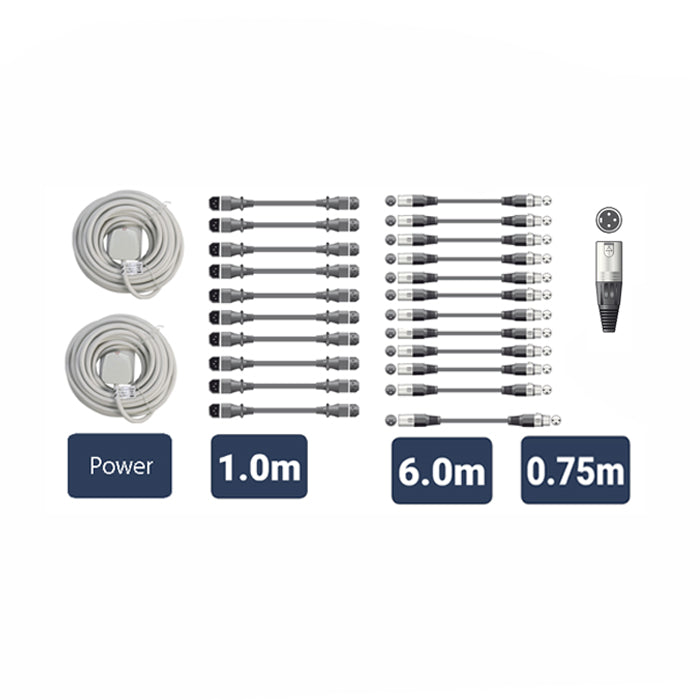

Professional DMX Lighting Leads

Including 1x 6M for linking between desk and stands, and 11x 0.75M link leads to dasy chain the signal between the lights.

DMX Terminator

For terminataing the signal at the last light. Best practice insists that you always use a DMX terminator at the last fixture to cap off erroneous data.

Power Cables

2x 10M mains plug to single gang socket extension, 2x Mains plug to IEC lead, 10x IEC male to IEC female link leads. (It is reccomended to only link a max of 6 fixtures to one mains outlet to balance off the power and prevent power tripping out.

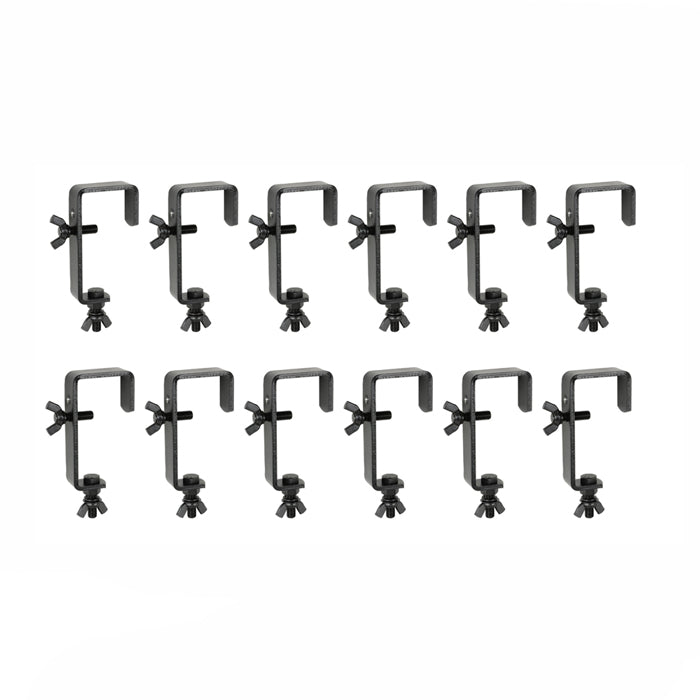

12x G Clamps
