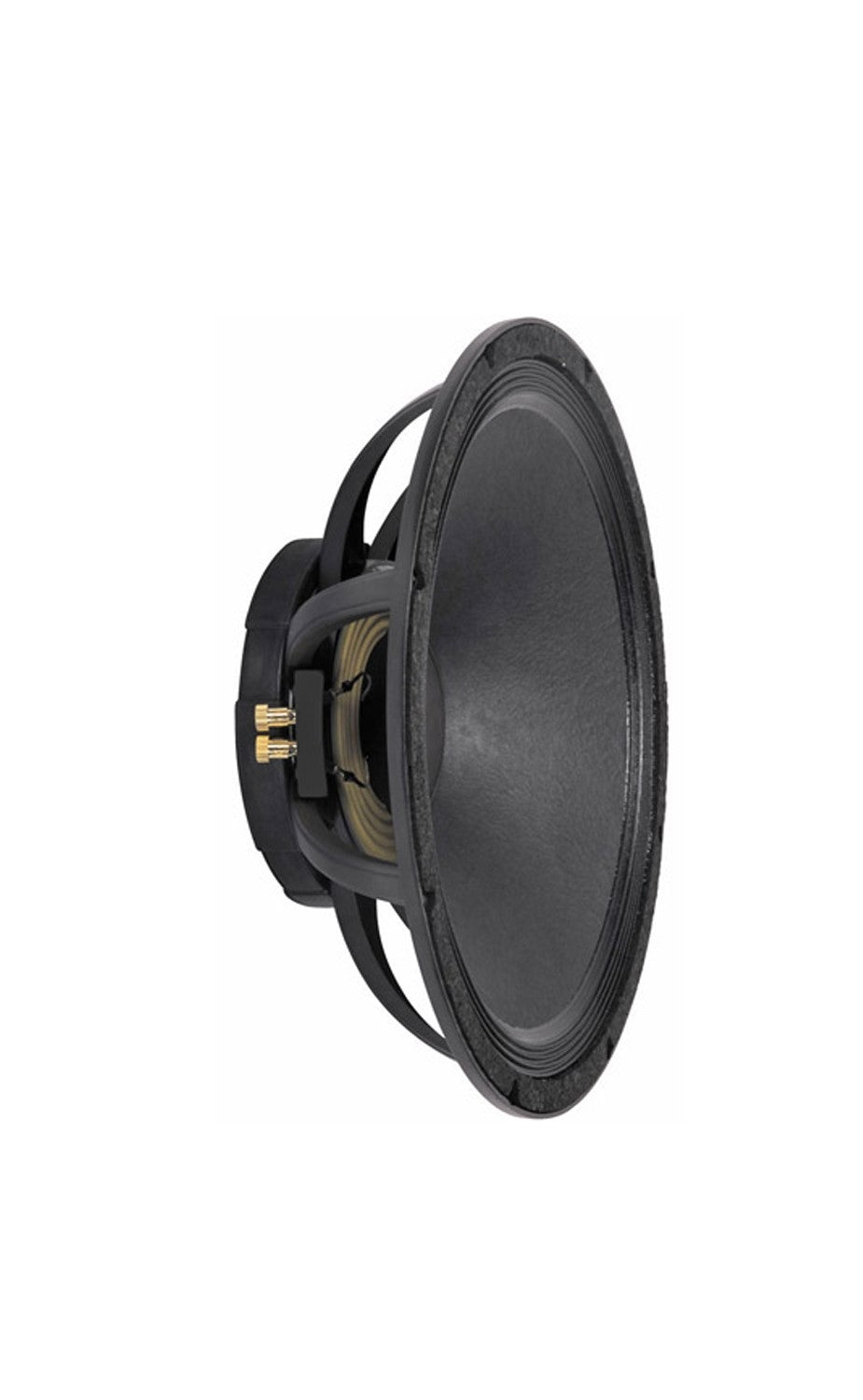

Peavey 1801 8 LT BW
Peavey 1801 8 LT BW
- Description
- Shipping and Returns
Product Type: Speakers
Peavey Part Number: 00560480
Product It Fits: 118 Int HC, 118 Sub-8 HC, DS1803, HDH-3, SP118 8 Ohm, SP118P, SP218, 118 Sub Theater
Sensitivity: 97.0 dB / 1W 1m
Voice Coil Cooling: na
Net Weight: 18 lbs / 8.2kg
Throat Parameter: Standard: 2" / 50.8 mm; Optional: 1.6" / 40.6mm; Supplied with throat extension
Nominal Impedance: 8 Ohms
Minimal Impedance: 7.1 Ohms
DC Resistance: 6.8 Ohms
Power Capacity 1Khz - 20Khz: 500 Hz to 20000 Hz
Nominal Efficiency: 30%
Frequency Response: 500 Hz to 2000 Hz
Recommeded Crossover: 1000 Hz
Lowest Recommended Crossover: 500 Hz at 12 dB / Octave
Dimensions: Standard: 8.388" (213mm)D x 6.05" (154mm) H
Horn Coupling Diameter: na
Horn Coupling Threads: na
Shipping Weight: Standard: 25 lbs / 11.4 kg
Diaphragm Kit: 377380
Power - Peak: 1400W
Power - Program: 700W
Power - Continuous: 350W
Frequency Range: 35 Hz - 1 kHz
Voice Coil Diameter: 4.0" / 100mm
Voice Coil Material: Aluminium ribbon wire; Polymide-impregnated fibreglass former Nomax stiffener welded; OFHC copper leads.
Znom (ohms): 8.000
Revc (ohms): 6.230
BL (T/M): 18.000
Vas (Litres): 284.900
Cms (uM/N): 131.100
Mms (gm): 118.000
Qms: 5.590
Qes: 0.577
Qts: 0.523
Xmax (mm): 5.000
Le (mH): 0.300
SPL (1W 1m): 97.000
No (%): 3.180
Vd (cu. in. /ml): 75.6 / 1239
Pmax (Watts pgm): 700.000
Disp (cu. In. / ml): 228 / 3737
Replacement Basket: 560490
