Peavey RX14 Compression Driver Tweeter
Peavey RX14 Compression Driver Tweeter
- Description
- Shipping and Returns

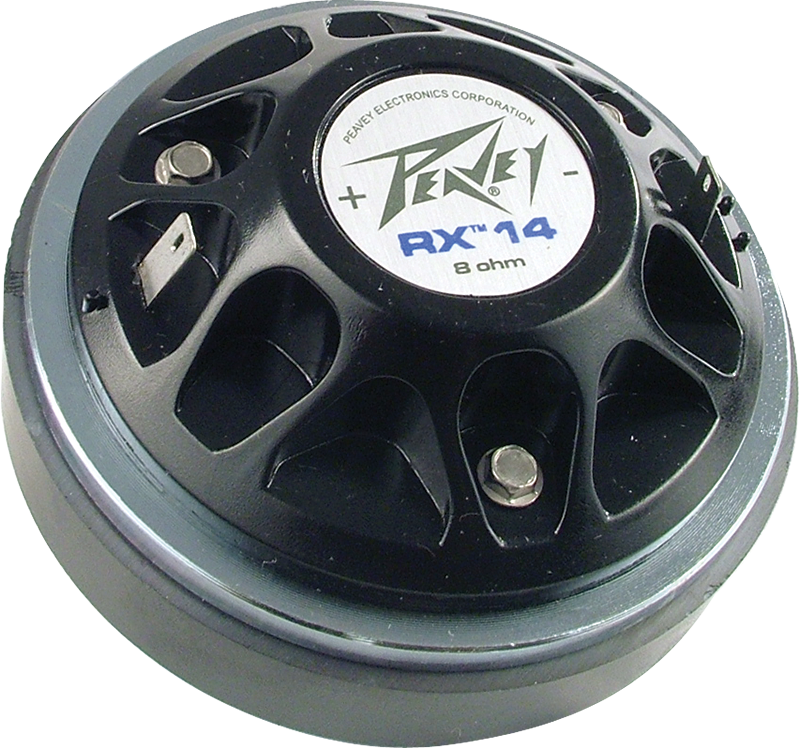

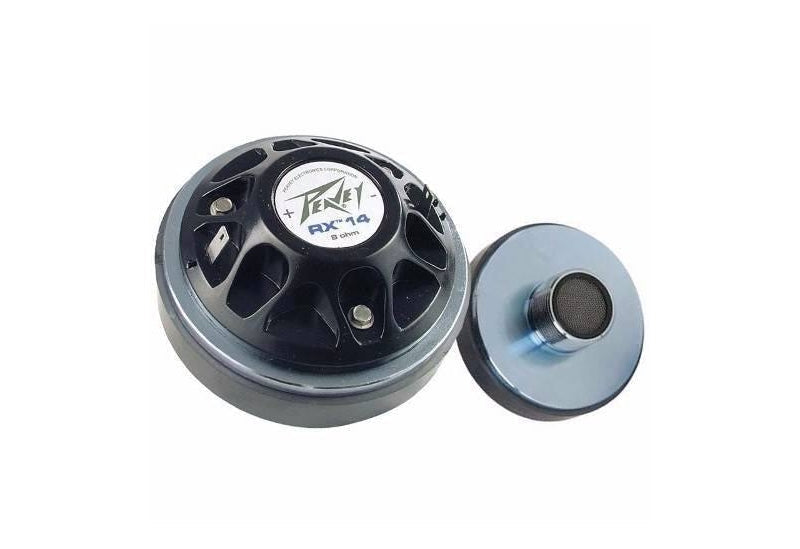

This is a genuine Peavey RX14 Driver replacement. A titanium compression driver (tweeter) found in Peavey PR series speaker cabinets, such as the PR12. The RX14 replaces blown or faulty compression drivers, and restore the cabinet's high and mid frequency response. Comes with diaphragm and full magnet assembly in full and fully assembled ready to install.
Diameter: 1.4"
Throat Parameter: .938" / 23.8 mm
Nominal Impedance: 8 Ohms
Minimum Impedance: 7.1 Ohms
DC Resistance: 6.8 Ohms
Power Capacity 1000 Hz to 20,000 Hz: 120 W peak, 60 W program, 30 W continuous
Sensitivity: 104 dB SPL 1 Watt at 1 meterOn-axis on 90° H x 45° V horn
Nominal Efficiency: 30%
Frequency Response: 1.5 kHz to 20 kHz
Recommended Crossover: 1,800 Hz at 12 dB / Octave
Lowest Recommended Crossover: 2,000 Hz at 12 dB / Octave
Diaphragm: Commercially pure titanium
Voice Coil Diameter: 1.4" / 34.4 mm
Voice Coil Material: Edge-wound ribbon with high temp Kapton bobbin
Flux Density: 11,500 gauss (1.15T)
Dimensions: 3.54" (90 mm) diameter x 2.40" (61 mm) depth
Horn Coupling Diameter: .938" (23.8 mm)
Horn Coupling Threads: Standard 1 ⅜" / 18"
Net Weight: 33.6 oz.
Shipping Weight: 38 oz.
Voice Coil Cooling: Ferrofluid
Weight Unpacked: 2.26 lb(1.024 kg)
Weight Packed: 2.26 lb(1.024 kg)
Width Packed: 4.25"(10.795 cm)
Height Packed: 4.25"(10.795 cm)
Depth Packed: 3.25"(8.255 cm)
