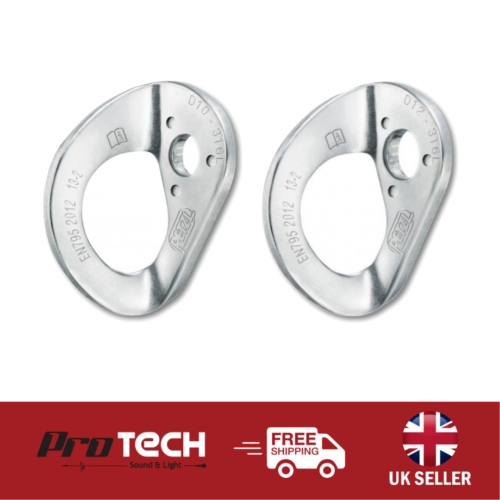

Petzl COEUR Hanger Plate Stainless Steel OUTDOOR Wall Hanger 10mm 12mm

Petzl COEUR Hanger Plate Stainless Steel OUTDOOR Wall Hanger 10mm 12mm

Description

Stainless Steel Wall Hangers are for outdoor and indoor use as stainless steel protects from rusting

We don't sell the cheaper steel ones

10mm and 12mm

Steel hanger plate in stainless steel. PS36A D10.

To fit M10/M12 bolts.

These hangers are Petzl's 2016 model, recognisable by the three dimples on the contact surface, which help to reduce rotation.

Material(s): Stainless steel
Certification(s): EN 795 A, EN 959

Bolt hole 10mm M10 and 12mm M12

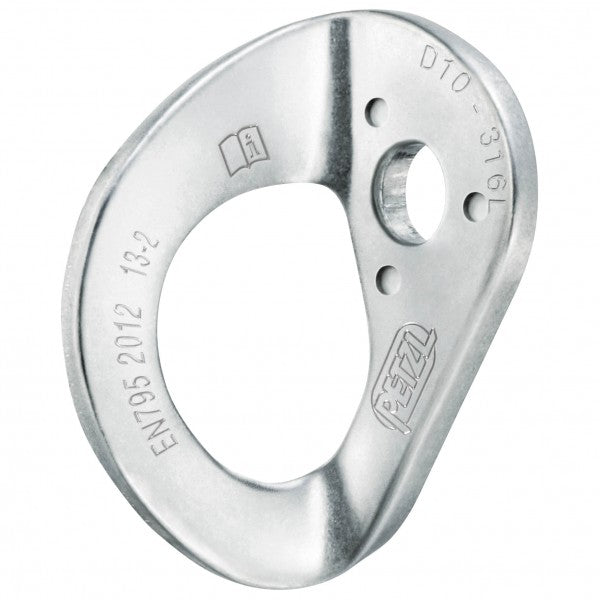

Description - 10mm

  • Complete and durable assembly:
    - comprised of a COEUR STEEL hanger.
    - made of steel, for interior uses
    - hanger anti-rotation system: textured back keeps the hanger from turning when the anchor is being installed or when it is heavily laterally loaded during use
  • Easy clipping:
    - the wide, ergonomic connection hole facilitates carabiner clipping
    - the width of the hole allows installation of two carabiners at the same time
  • Prevents wear of carabiners: the thickness of the hanger and the rounded edges of the connection hole limit wear of carabiners
  • Available in two bolt sizes.

Specifications

  • Material(s): Stainless Steel

References - 10mm

Diameter - 10mm
Weight - 110g
Drilling depth - 8.5cm
Drilling diameter - 10mm
Resistance to cutting on concrete 50 MPa - 23kN
Pull-out strength in concrete 50 MPa - 15kN

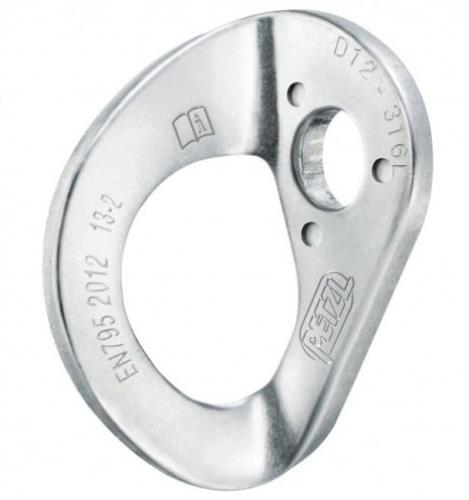

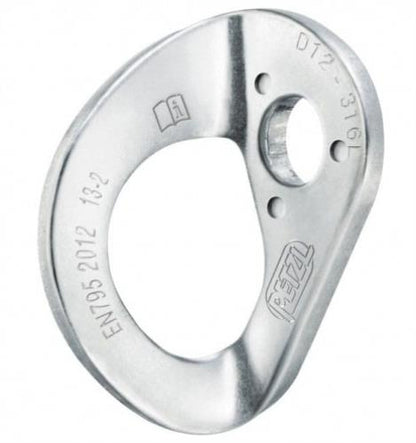

12mm

Steel hanger plate in stainless steel.  P36BS 12

To fit M12 bolts.

These hangers are Petzl's 2016 model, recognisable by the three dimples on the contact surface, which help to reduce rotation.

Material(s): stainless steel
Certification(s): EN 795 A, EN 959

Bolt hole 12mm M12

Description - 12mm

  • Complete and durable assembly:
    - comprised of a COEUR STAINLESS hanger
    - 316L stainless steel offers excellent resistance to corrosion in typical exterior environments
    - hanger anti-rotation system: textured back keeps the hanger from turning when the anchor is being installed or when it is heavily laterally loaded during use
  • Easy clipping:
    - the wide, ergonomic connection hole facilitates carabiner clipping
    - the width of the hole allows installation of two carabiners at the same time
  • Prevents wear of carabiners: the thickness of the hanger and the rounded edges of the connection hole limit wear of carabiners
  • Available in two hole sizes (10 or 12 mm) nut and bolt not included.

Specifications

  • Material(s): 316L stainless steel
  • Certification(s): EN 959

Diameter - 12mm
Weight - 135g
Drilling depth - 8.5cm
Drilling diameter - 12mm
Resistance to cutting on concrete 50 MPa - 25kN
Pull-out strength in concrete 50 MPa - 18kN
