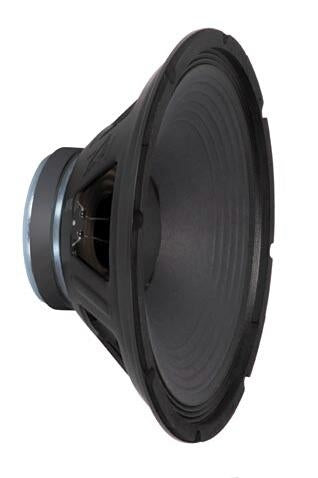

Sheffield Pro 1500+
Sheffield Pro 1500+
- Description
- Shipping and Returns
All the information you may need is below:
Product Type: Speakers
Peavey Part Number: 00577910
Product It Fits: PV 15M, TLS 115X Sub, TLS 4X, TLS 5, TLS 5X, TLS 4
Sensitivity: 98.0 dB / 1W 1m
Voice Coil Cooling: na
Net Weight: 12.5 lbs / 5.7 kg
Throat Parameter: Standard: 2" / 50.8 mm; Optional: 1.6" / 40.6mm; Supplied with throat extension
Nominal Impedance: 8 Ohms
Minimal Impedance: 7.1 Ohms
DC Resistance: 6.8 Ohms
Power Capacity 1Khz - 20Khz: 500 Hz to 20000 Hz
Nominal Efficiency: 30%
Frequency Response: 500 Hz to 2000 Hz
Recommeded Crossover: 1000 Hz
Lowest Recommended Crossover: 500 Hz at 12 dB / Octave
Dimensions: Standard: 8.388" (213mm)D x 6.05" (154mm) H
Horn Coupling Diameter: na
Horn Coupling Threads: na
Shipping Weight: Standard: 25 lbs / 11.4 kg
Diaphragm Kit: 377380
Power - Peak: 1000W
Power - Program: 500W
Power - Continuous: 250W
Frequency Range: 40 Hz - 3 Hz
Voice Coil Diameter: 2.5" / 63mm
Voice Coil Material: 2 layers, thermally bonded copper wire; Kapton former Nomex stiffener
Znom (ohms): 8.000
Revc (ohms): 5.120
BL (T/M): 14.180
Vas (Litres): 212.500
Cms (uM/N): 190.200
Mms (gm): 73.210
Qms: 6.690
Qes: 0.500
Qts: 0.465
Xmax (mm): 3.600
Le (mH): 0.330
SPL (1W 1m): 98.000
No (%): 3.200
Vd (cu. in. /ml): 36.2 / 593.3
Pmax (Watts pgm): 500.000
Disp (cu. In. / ml): 196 / 3212
